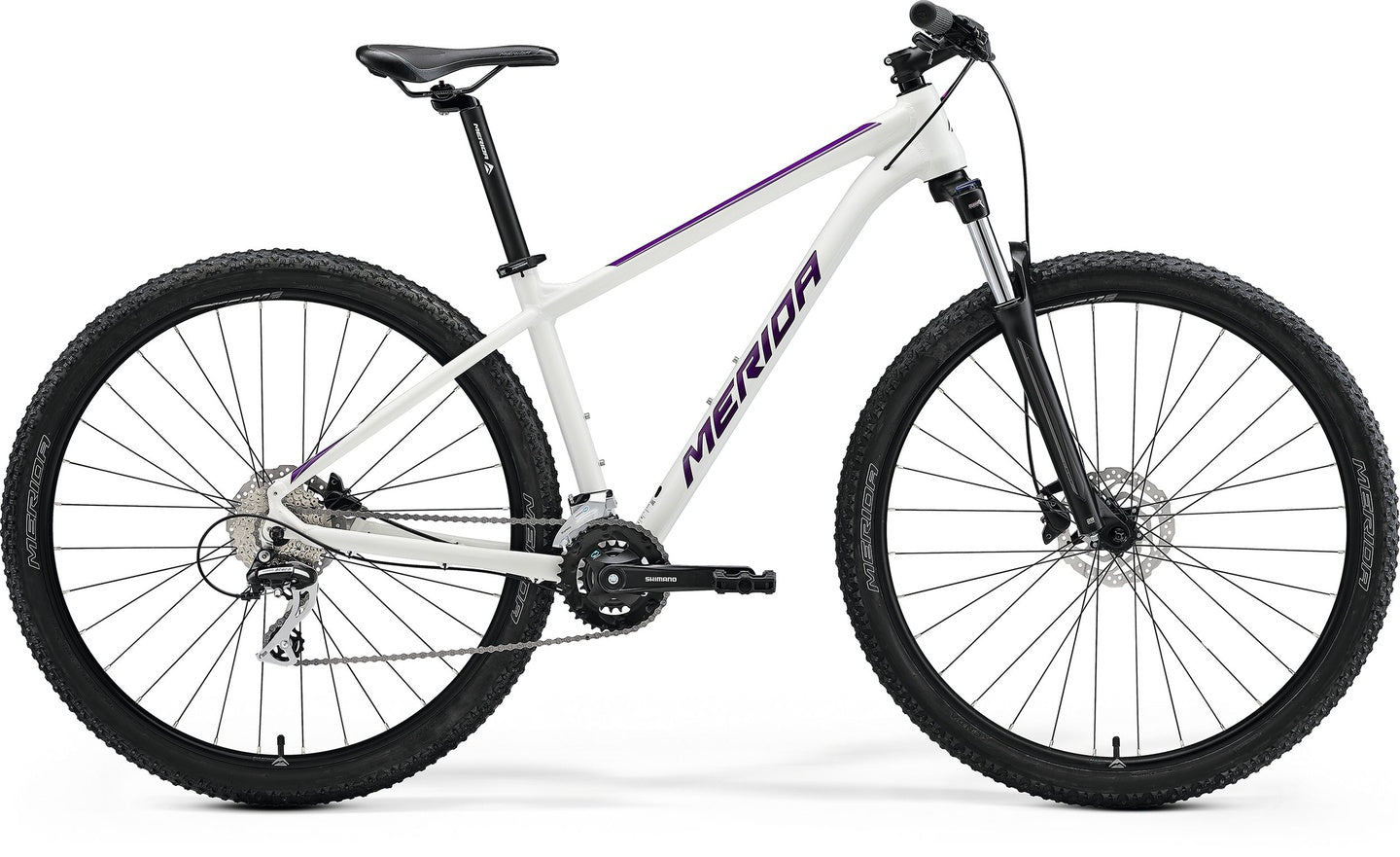

Merida Big Nine 20-2X

Key Features

Frame:

• Merida Big Nine TFS III, double-butted aluminum
• Internal cable routing
• Compatible with kickstand, fender, and rack mounts
• 29" wheel size geometry

Fork:

• SR Suntour XCM30
• 100mm travel
• Coil spring with hydraulic lockout

Drivetrain:

• Front Derailleur: Shimano FD-M315
• Rear Derailleur: Shimano RD-M370
• Shifters: Shimano SL-M315
• Crankset: Shimano FC-M315-2, 36/22T
• Cassette: Sunrace CSM66, 11-34T, 8-speed

Brakes:

• Shimano MT-200 hydraulic disc brakes
• 160mm rotors front and rear

Wheels:

• Merida alloy rims, 29"
• Hubs: Shimano TX505
• Tires: Merida K1080, 29 x 2.2"

Cockpit:

• Handlebar: Merida Comp CC, 720mm
• Stem: Merida Comp CC
• Seatpost: Merida Comp, 30.9mm
• Saddle: Merida Sport Comfort

Other Details:

• Weight: Approx. 14.4–14.7 kg
• Frame Sizes: S, M, L, XL (may vary by region)
• Colour: White/Gray variant
