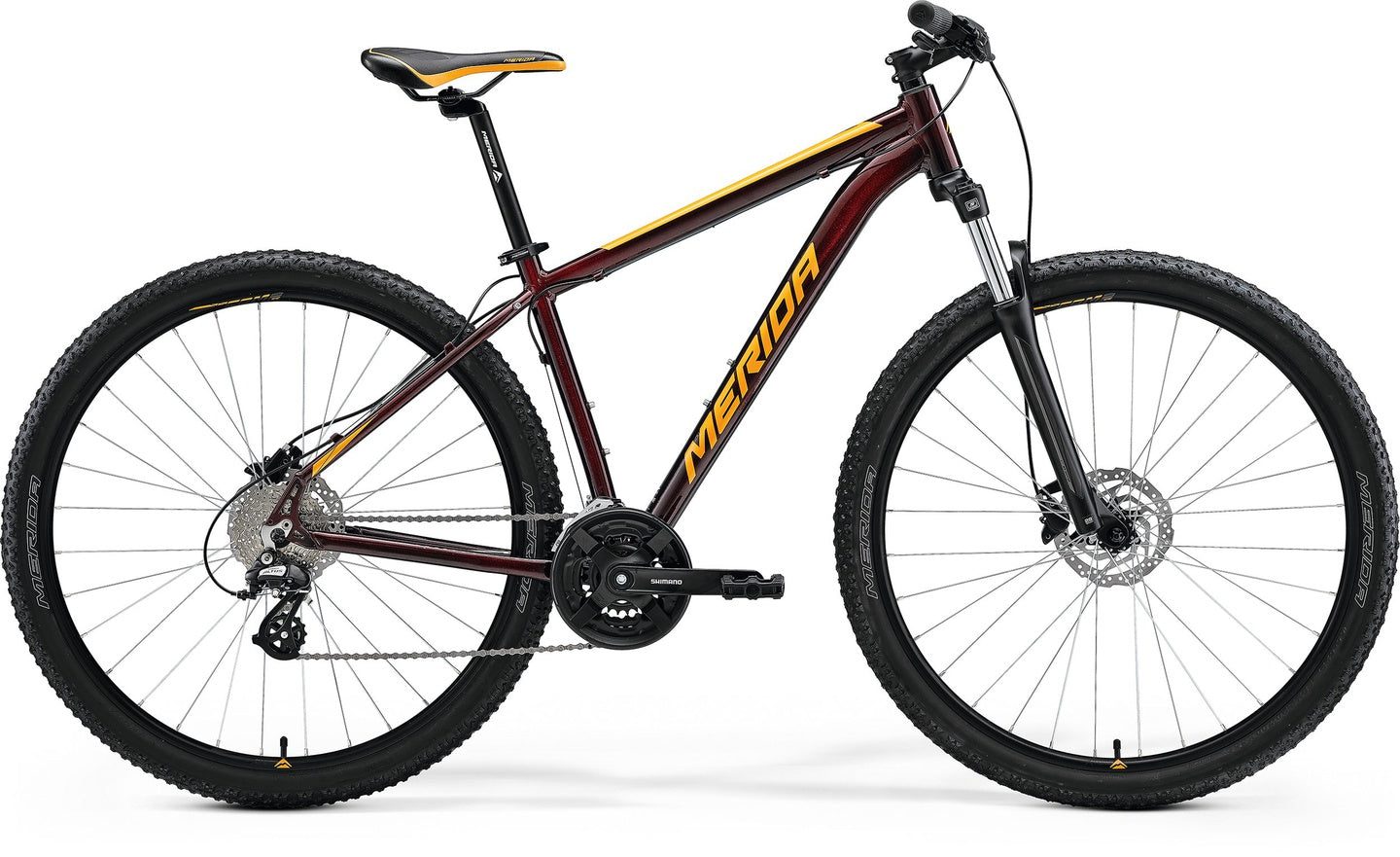

Merida Big Nine 15

Key Features

Frame:

• Merida Big Nine TFS, aluminum
• Double-butted tubing
• Internal cable routing
• Disc brake compatible
• 29" wheel geometry for improved rolling over rough terrain

Fork:

• Suntour XCT30
• 100mm coil spring travel
• Preload adjust
• Quick-release axle

Drivetrain:

• Front Derailleur: Shimano FD-TY300
• Rear Derailleur: Shimano RD-TX800
• Shifters: Shimano ST-EF500
• Crankset: Shimano TY301, 42/34/24T
• Cassette: Sunrace CSM66, 8-speed, 11–34T
• Speeds: 3x8-speed

Brakes:

• Tektro M275 hydraulic disc brakes
• 160mm rotors

Wheels:

• Merida alloy rims, 29"
• Shimano hubs
• Tires: Merida K1080, 29 x 2.2"

Cockpit & Contact Points:

• Handlebar: Merida Comp, 690mm
• Stem: Merida Comp
• Seatpost: Merida Comp, 30.9mm
• Saddle: Merida Sport
