EnduroBearing - 6801 LLB ABEC-3 Radial Bearing | 12×21×5mm

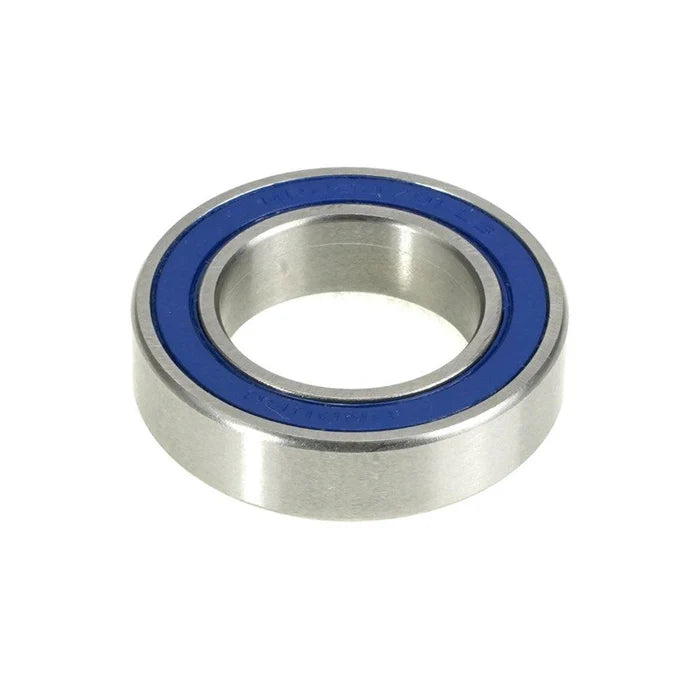

Enduro 6801 LLB – ABEC-3 Radial Bearing (C3 Clearance)

Dimensions: 12mm × 21mm × 5mm

A versatile radial bearing engineered for demanding cycling applications. Commonly used as a hub bearing in quick-release hub designs and pedals, it can also serve as a pivot bearing — though the MAX-type version is better suited for full suspension use.

Key Features

• ABEC-3 rated deep-groove design races for precision and durability
• Grade 10 balls for consistent performance under load
• Dual-lip labyrinth (LLB) seals riding in a micro-groove for full labyrinth protection against dirt and moisture
• 90% fill Mobilux NGLI 2 high-pressure waterproof synthetic grease
• Engineered with the deepest groove races possible to accommodate the largest balls

Material Options

Available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid, and XD15 with ceramic or stainless balls.

Specifications

• Static Load: 234 lbf / 1.04 kN
• Weight: 5.6g
• Seal Type: LLB (dual-lip labyrinth)
• Clearance: C3
• Rating: ABEC-3
